Products > Extrusion Welder > Geomembrane welding machine > HDPE Geomembrane Welding Machine
Product name : HDPE Geomembrane Welding Machine
Size : SWT-NS800
Welding Range : 0.2-1.5mm
Package QTY : 1set
G.W : 9KGS
N.W : 5KGS
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→

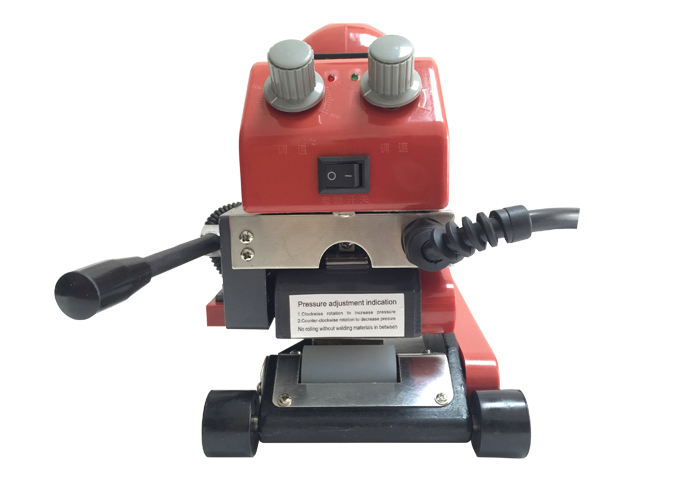

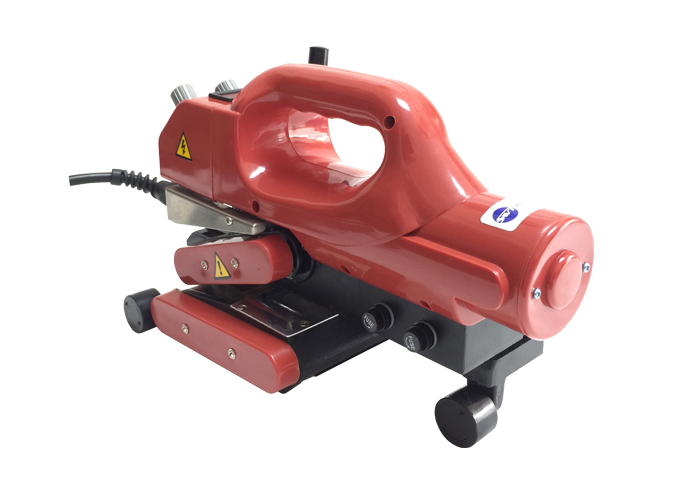

  SWT-NS800 Geo-membrane Hot Wedge Welder
geomembrane automatic welder machine,hdpe geomembrane welding machine
Geomembrane Welding Machine PE Hot Wedge Welder
Geomembrane Welding Machine
High control accuracy
Keep constant speed
High quality , easy operation
Product Description

Technical Parameter
Voltage: 220V
Frequency: 50/60Hz
Power: 800W
Welding speed: 0.5-5m/min
Heating temperature: 0-450℃
Thickness of material to be welded: 0.2mm-1.5mm
Overlap width: 10cm
Welding width: 12.5mm×2, interior cavity 12mm
Seam strength: ≥85% base material (tensile resistant in shear direction)
Weight: 5Kg
Insulation class: class II
Geo-membrane Overlap Wedge Welder
Geo-membrane welder is a new welding machine which is developed by our company. They can weld geomembrane of
various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,
The control of this series adopt PID automatic thermostatic control with high control and low temperature fluctuation.
Speed control of this series adopt PWM automatic voltage and regulation speed circuit.
Direct current servo the motor drive with great output torque and staple performance in walking.
It can maintain a constant speed on the condition of creeping, vertical creeping and road load.
Also this series of welding machine are stable in performance despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality.
It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
