Products > Extrusion Welder > Geomembrane welding machine > Geomembrane Welding Machine

Product name : Geomembrane Welding Machine

Size : SWT-NSGM1

Welding Range : 0.2-2.0mm

Package QTY : 1sets/carton

G.W : 13kgs

N.W : 7kgs

MEAS : 45*30*40cm

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

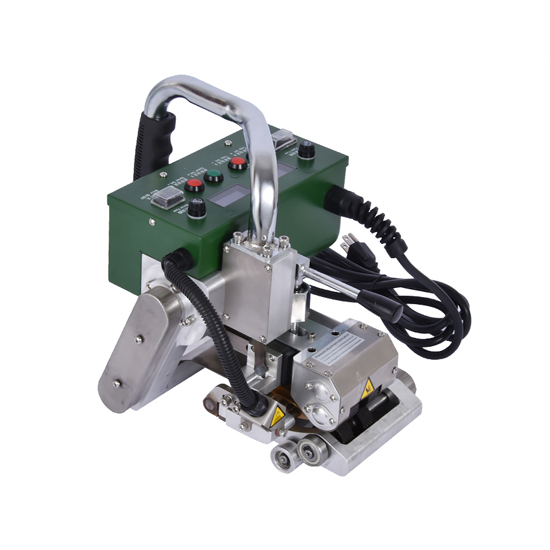

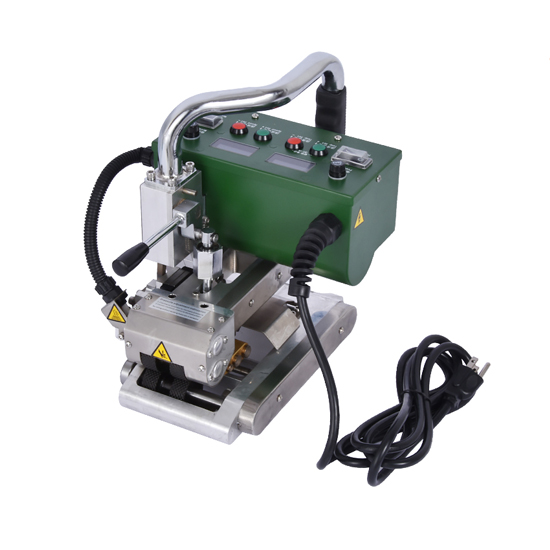

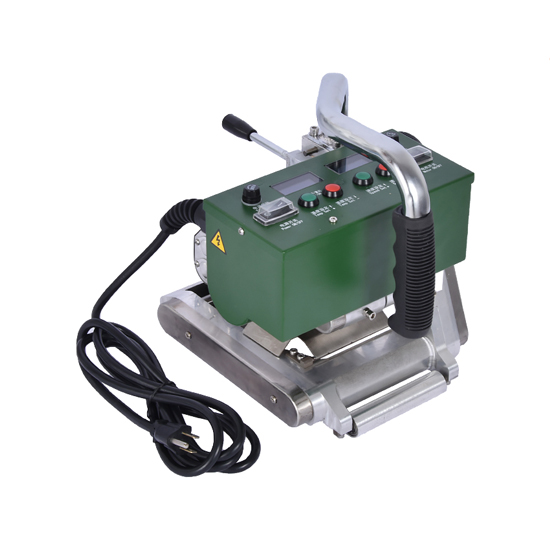

SWT - NSGM1 To Weld 0.2-2.0mm Thick HDPE geomembrane welding machine

Geomenbrane hot wedge welder/geomenbrane welding machine/HDPE sheet welding machine

Brief Introduction
SWT - GM1 HDPE Geomembrane Welding Machine adopts advanced hot wedge structure.
With its high power, high speed and pressure, it welds 0.2mm-2.0mm thickness hot melting materials
such as HDPE,LDPE,PVC,EVA,ECB,PP and others.
This machine is specially designed for water conservancy, aquaculture, landfills, chemical mining,
sewage treatment, roof constructions and other waterproofing projects.

Tips:
1. For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.
2. For welding membrane with thickness above 1.0mm, the steel pressure roller is the best choice.

3. Any customized demands, you can ask us directly. We have professional technicians team.

Technical Parameters For SWT - NSGM1 HDPE Geomembrane Welding Machine
Voltage		220 V ± 5%
Frequency		50/60Hz
Power		1200W
Heating temperature		0-450°C
Welding Speed		0.5-8m/min
Thickness of material		0.2mm-2.0mm
Overlap width		120mm
Welding width		15mm*2, interior cavity 20mm
Seam strength		≥85% base material (tensile resistant in shear direction)
Weight		7.5 KGS
Size		350(L) X 267mm(W) X 267mm(H)
