Products > Extrusion Welder > Geomembrane welding machine > Hot Air Wedge Welding Machine

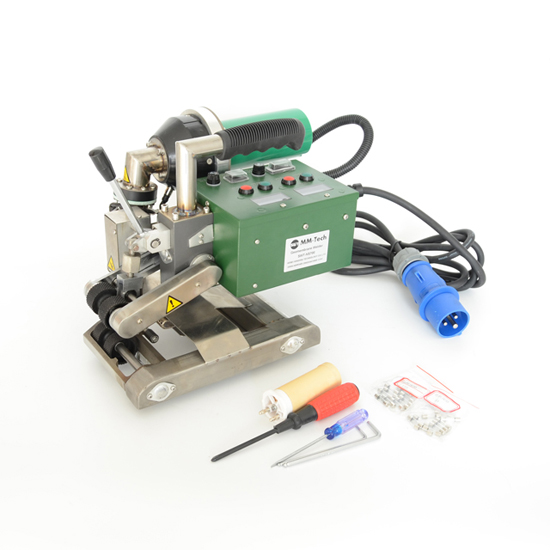

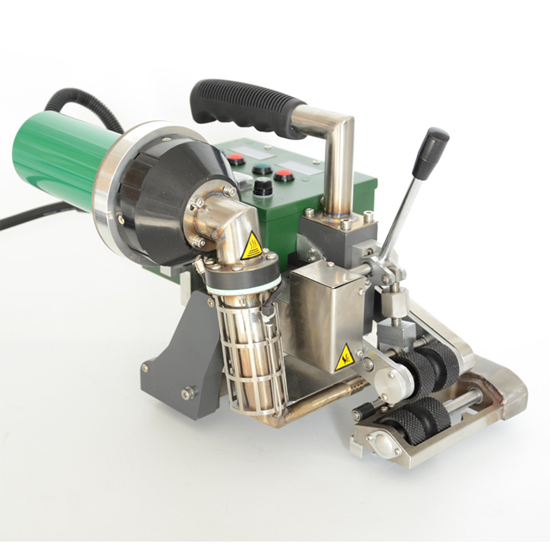

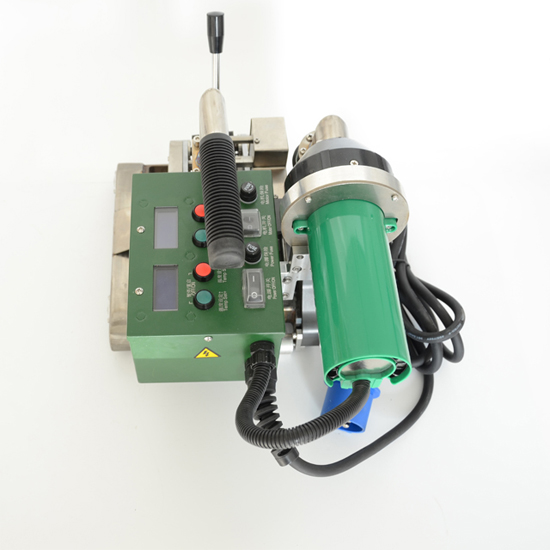

Product name : Hot Air Wedge Welding Machine
Size : SWT-NS700
Welding Range : 1.0-3.0MM
Package QTY : 1sets/carton
G.W : 13kgs
N.W : 7kgs
MEAS : 45*30*40cm
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
  SWT - NS700 Geomembrane Welding Machine PE Hot Wedge Automatic Welder
Brief Introduction
SWT - NS700 Geomembrane Welding Machine PE Hot Wedge Automatic Welder adopts advanced hot air heating system. With small, light and high speed,
it perfects the welding quality even if corrosive materials and bad working environment.
This machine is specially designed for tunnels, subway, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roof constructions and other waterproofing projects.
Tips:
1. This machine is welded with steel pressure roller to suite the hot air welding.
2. Any customized demands, you can ask us directly. We have professional technicians team.
Technical Parameters For SWT - NS700  Geomembrane Hot Wedge Welder
Voltage
220 V ± 5%
Frequency
50/60Hz
Power
3000W
Heating temperature
20-600°C
Welding Speed
0.5-4.2m/min
Thickness of material
0.5mm-2.0mm
Overlap width
160mm
Welding width
15mm*2, interior cavity 15mm
Seam strength
≥85% base material (tensile resistant in shear direction)
Weight
7.5 KGS
Usage
for welding PE PVC and other hot melt materials

Advanced intelligent digital control system which temperature and speed readed on LCD screen .

Pressure adjustable

Advanced " T " jib design and pressure regulation structure .

Special stainless steel pressure rollers with strong pressure force .

Advanced hot air heating system perfects the welding quality even if corrosive materials and bad working environment .

Package Of Geomembrane Welding Machine
Model
SWT - NS700
Weight
7.5KGS / 20KGS


Package Dimensions
1 CARTON
1 ALLOY BOX
320mm(L) X 160mm(W) X 215mm(H)

Package Of Geomembrane Hot Wedge Welding Machine
Size
SWT-GM2
Weight
7.5KGS / 14KGS


Package Dimensions
1 CARTON
1 ALLOY BOX
350(L) X 267mm(W) X 267mm(H)
