Product name : pipe extrusion welder machine
Size : SWT-NS610C
Welding Range : 3.0mm-4.0mm
Package QTY : 1 alloy box
G.W : 13kgs
N.W : 7kgs
MEAS :
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
   Hand Extruder SWT-NS610C is used for weldng PE,PP,PVC,PVDF and so on.This tool is of light weight,stable performance,
convenient operation,large-amount extrusion and high efficiency,the advantage is for welding narrow gap and corners where is not easy to reach.

Features

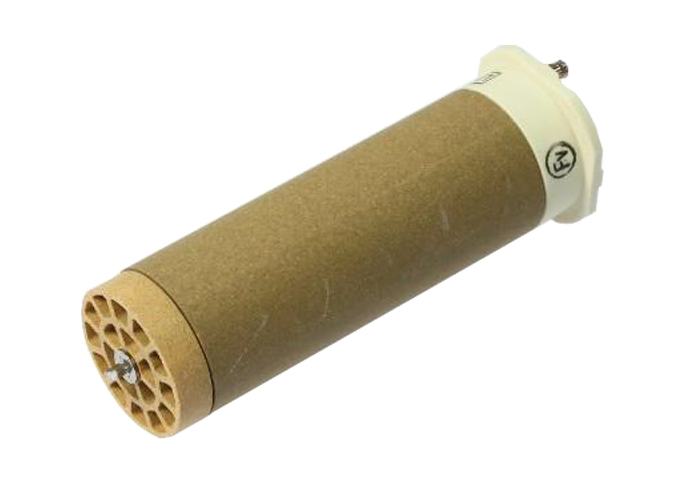

1)the two independent heating systems for better heating performance and longer service life.

2)light and easy to handle.

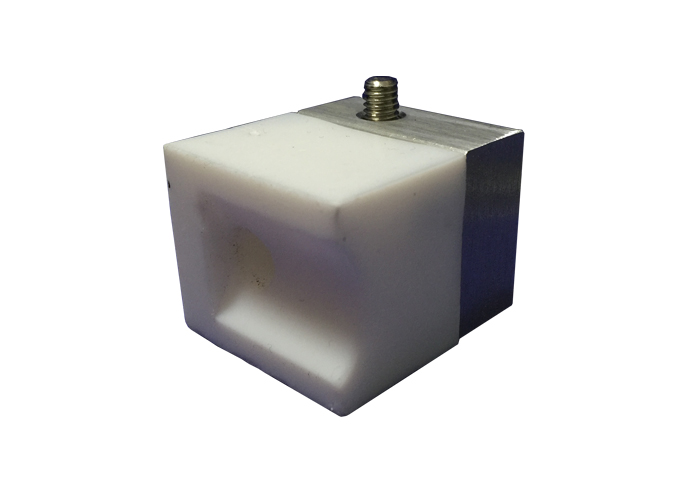

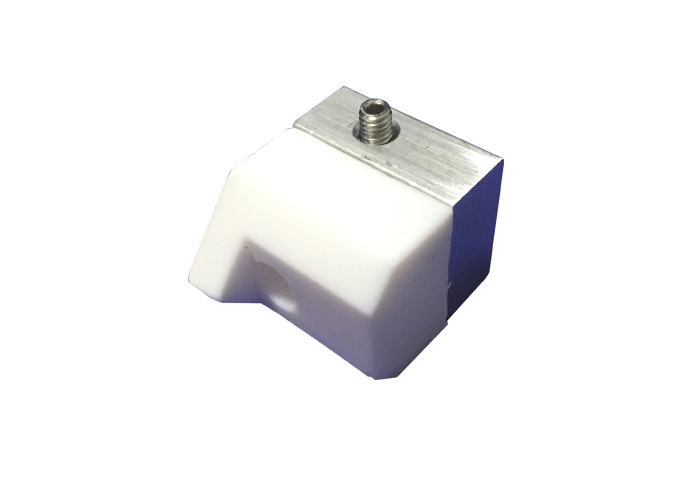

3)available to different types of welding seam with different welding shoes.

4)with control box to adjust temperture and protect electric motor.

1.Basic Parameter

Voltage 220 V ± 5%
Frequency 50/60Hz
Extruding Power(Metabo motor) 1100W
Hot Air Power 1600W
Welding Rod Heating Power 800W
Air Temp 20-600°c Adjustable
Extruding Temp 200-300°c Adjustable
Welding Speed  2.0-2.5Kg/h
Welding Rod DIA 3.0mm-4.0mm
Weight 7.0Kg
Application
