LEADER SAEMIN INTERNATIONAL CORP., LTD


Product name : Extrusion Welder
Size : SWT-NS610B
Welding Range : 2-20mm
Package QTY : 1sets/carton
G.W : 13kgs
N.W : 7kgs
MEAS : 47*35*20cm
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
  MM-Tech Brand Hand Extruder Plastic Extrusion Welder SWT-NS610B including
Hand Extruder Plastic Extrusion Welder for weld geo-membrane,hdpe pipe,plastic tank,
PE Plastic Extrusion Welder,
SWT-NSGM1Geomembrane Wedge Welder for geomembrane sheet,
and SWT-B160/50H Pe Welding Machine Butt Fusion Welder for HDPE Ppie and Fittings.

SWT-NS610A Hand Extrusion Gun & SWT-NS610B Hand Held Plastic Extruder with
MEITABAO brand driving motor.

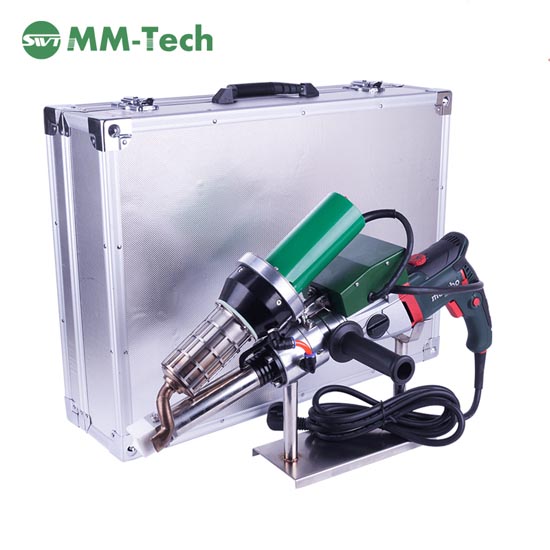

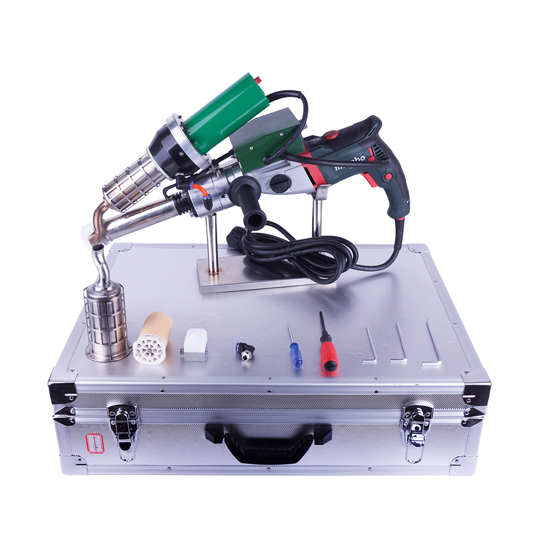

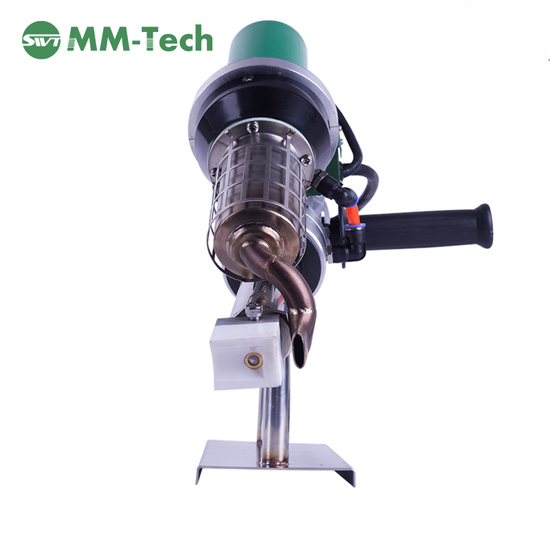

Plastic Extrusion Welder SWT-NS610B



Application and Features
Pe Hand Extruder  SWT-NS610B is used for weldng PE,PP,PVC,PVDF and thermoplastic material.
This tool is of lightweight,stable performance,convenient operation,large-amount extrusion and high

efficiency,the advantage is for welding narrow gap and corners where is not easy to reach.
1.This welder start to weld when the temperature up to 270°c
2.This welder is welded with PE or PP welding rod 3.0-4.0mm,if you want 5.0mm welded,please specify before order.
3.It comes with two welding shoes ,flat one and corner one.
4. Any customized demands, you can ask us directly. We have professional technicians team.





Technical Parameters For  PP Extrusion Welders

Model

SWT-NS610B

Voltage

220V

Frequency

50/60Hz

Extruding Motor Power

800W

Hot Air Power

3400W

Welding Rod Heating Power

800W

Air Temp

20-600°c Adjustable

Extruding Temp

200-380°c Adjustable

Welding Rod DIA

3.0mm-4.0mm

Weight

6.5/13Kg

Application

PP PE PVC




SWT-NS610B  PE Plastic Extrusion Welder Services
The PVC Plastic Extrusion Welderwas designed in according to the DVS standard
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
