Products > HDPE Pipe Welding Machine > Manual butt fusion welding machine > hdpe hot plate butt welding machine
Product name : hdpe hot plate butt welding machine
Size : SWT-B160/50M
Welding Range : 50-160mm
Package QTY : 2 plywood case
G.W : 60KGS
N.W : 50KGS
MEAS : 0.3CBM
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
SWT-B160/50M Manual Butt Fusion Welding Machine
Plastic pipes manual butt fusion machine SWT-B160/50M

Application

Suitable for welding of plastic pipes and / or fittings made of PE,PP, and PVDF,
can be operated in any complex work condition.

Features
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly.

Technical specifications
Welding ranges: 50mm－160mm
(50mm-63mm－75mm－90mm－110mm－125mm－140mm－160mm)
Ranges of application: PE,PP and PVDF
Working voltage: ～220V ±10%,50/60Hz
Total power:1.7kW , including:

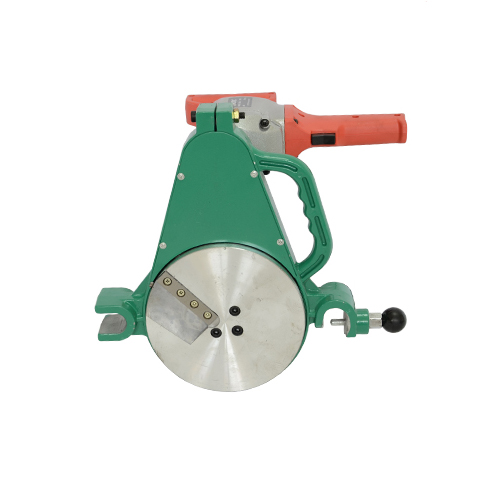

Planing tool:0.7 kW,
Heating plate:1.0 kW

PTFE coated heating plate, adjustable temperature control knob, difference in surface temperature ≤±3°, handy operation.
Environment temperature: －10° ～ 45°

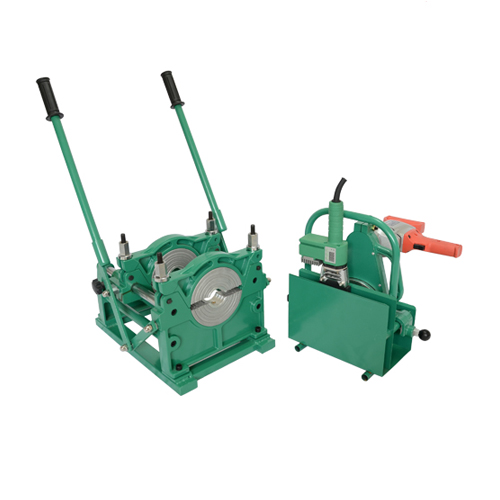

While machine consists of basic frame, heating plate, planing tool, and support (for planing tool & heating plate)
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.
