Specifications

Application

Suitable for welding of plastic pipes and / or fittings made of PE,PP, and PVDF, can be operated in any complex work condition.

Features

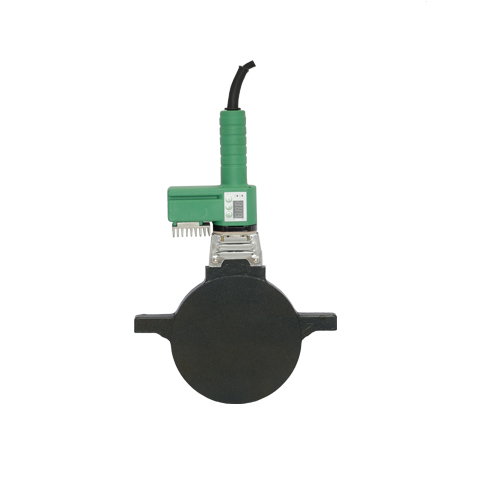

Removable PTFE coated heating plate with separate temperature control system.

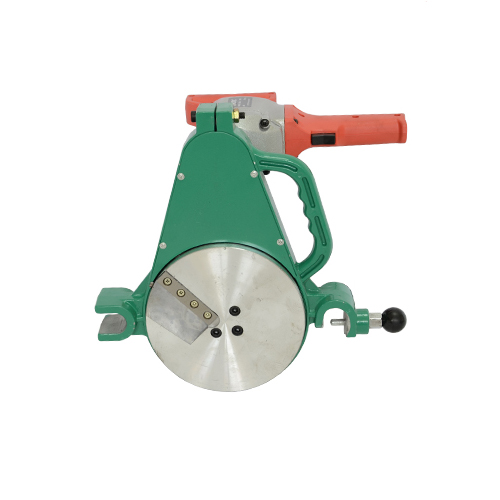

Electrical planing tool;

Be made of lightweight and high strength material; simple structure, small and delicate user friendly.

Technical specifications

1       Welding ranges: plastic pipes: 90mm-200mm

(90mm-110mm-125mm-140mm-160mm-180mm-200mm)

2      Ranges of application: PE,PP and PVDF

Range of application: PE,PP and PVDF

Working voltage: ~220V ±10%,50Hz

3 Total power: 2.0 kW , including: planing tool:0.8 kW,  heating plate:1.2 kW

4 PTFE coated heating plate, digital temperature controller, difference in heating plate surface temperature ≤±3°, handy operation.

5 Environment temperature: -10° ~ 45°

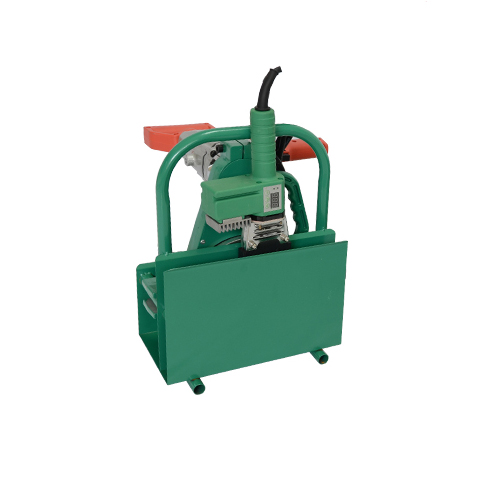

6 Whole machine consists of basic frame, heating plate, planing tool, and support (for planing tool & heating plate)
