Product name : Socket Fusion Tool
Size : PHL-98032
Welding Range : 20-32mm
Package QTY : 4sets/carton
G.W : 22kgs
N.W : 21kgs
MEAS : 47*28*36cm
 |
| Details: |

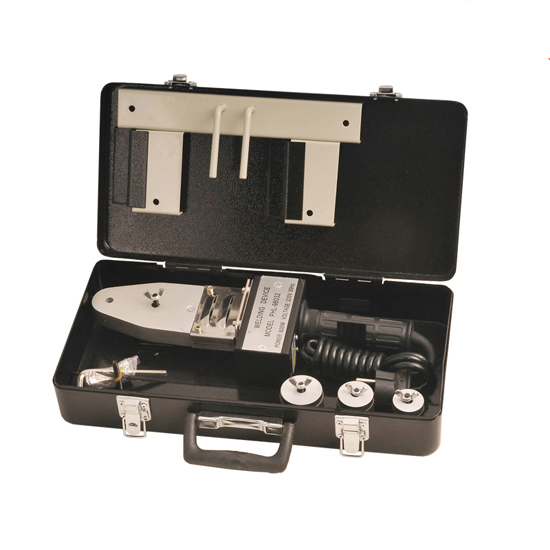

PHL-98032 Socket Fusion Tool
We are a professional manufacturer of thermal fusion welding device with MM-Tech Brand.
This Portable and mechanical welder is applicable to socket joint PP-R tubular products and parts of specification of 12-160mm. Our products were produced according to national standard of GB4706.1-1998 for electric appliances and passed test of Provincial Technology Institute. Mould head is made of alloy aluminum by refined process and the surface sprayed Teflon coat what produced by American Du Pont Company. The coat is non-conglutination, non-shedding and high temperature resistant. The dimension of working mould cover is conformity to German DTN8077 and DTN 8078standards so as to ensure best connection of tubular products and parts. 1.Product name:Handheld hot-melt welder
2.Rated Power:800W
3.Rated voltage:220V±10℅
4.Control Temperature 260℃
5.Working Temperature 260-280℃
6.Working Range 20-63MM
7.PKG:3PCS/CTNS
8.G.W/N.W:22/21KG,
9.MEAST:47X28X36CM
1.Product name:Handheld hot-melt welder 2.Rated Power:600W
3.Rated voltage:220V±10℅
4.Control Temperature 260℃
5.Working Temperature 260-275℃
6.Working Range 20-32MM
7.4PCS/CTNS
8.G.W/N.W:19/18KG,
9.MEAS:45X41X21CM
 |
